How I installed E34 seats in my E28 now with rear seats too!

Post by Coldswede »

Seems to be a lot of interest in this swap. I bought both fronts and the rear seat from an Canadian expat living in Cap Cod. They were stated to be "High Mileage" They must have smaller miles up there!

Anyway, here's how I did it, with pics and commentary:

First you acquire seats like these:





Amazingly clean:

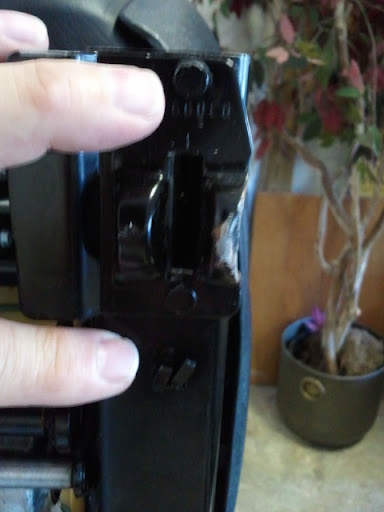

This is the "Hook Receiver" that has to be removed:


These upset retainers are a bit worrisome for the carpet and call for a spacer in the front:


Stock seats are smooth on bottom:

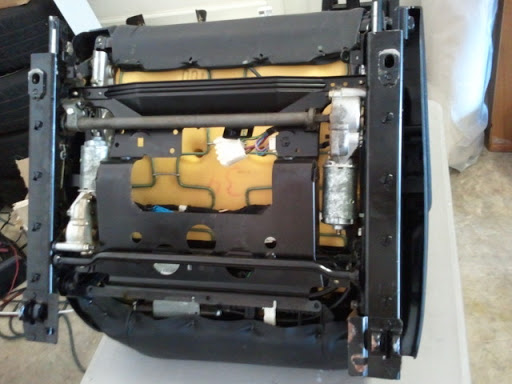

These rivets must be removed:


My weapon of choice, use a thick grinding disc not a thin cutting disc:


Thus:


Just pop 'em off:

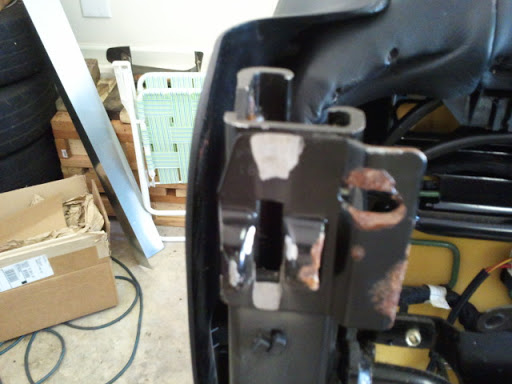

Hmm, not quite the right size:

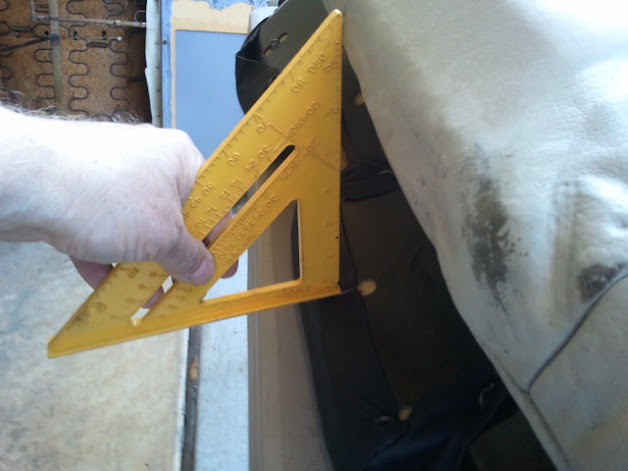

Measure a few times:


Upon measuring it becomes obvious the slots must be widened On the inside edge only! You need to take about 1/16 to 3/32 off. I used a flat bastard file and elbow grease. Five minutes per side.

Clean up the stump of the rivet with the grinder, prime and paint. Your almost done now.

We need power, but the old connectors and new seat harness are not compatible so:

I stole the hot and ground feed from the old seat:

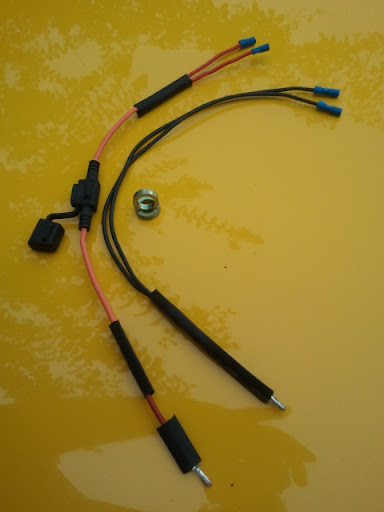

And built a new sub-harness, having learned you can never have too many fuses, I wired in a fuse holder. The main fuse for the seat is 8A so I used a 7.5A to protect the main harness:


Took the pics before I stole her hair dries to shrink the shrink tubing! :x

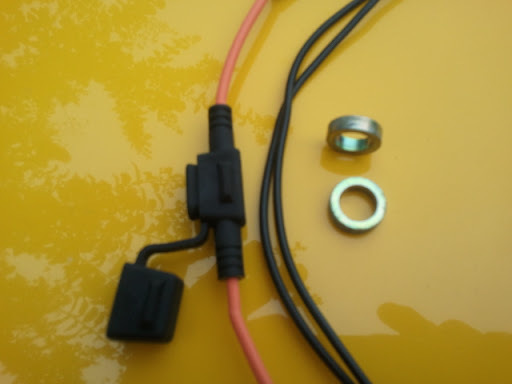

Close up of the fuse holder and spacers for front to keep the carpet from being chewed up:


New seats with heaters and power lumbar support installed, they are awesome!



The rear seat will have to wait until I figure out how to get them from Cape Cod to Florida :roll:

Edit:

I realized I failed to mention a couple important details.

One is that you will need to transfer the seat belt receiver from your old seat to the new seat as the original seat belts will not work in the E34 receiver. Or you could install the entire E34 seat belt system i suppose.

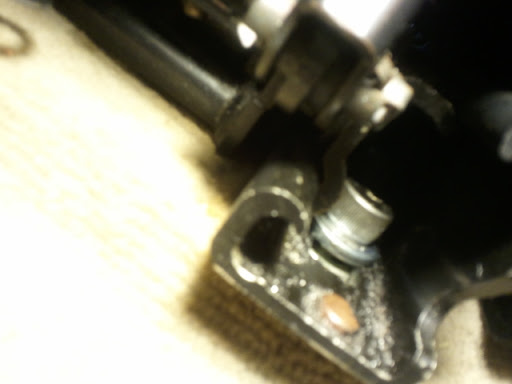

Two, and it is a bit more involved. You cannot use the stock bolts on the front of the seat rail. When you move the bolts in to fit the floor pan the bolt head will hit the slider and prevent full movement of the seat. The solution I used is to use a 10x24 mm 1.50 machine screw (Allen head bolt). I used two washers under the head to approximate the surface area a hex bolt would have on the rail.



Sorry not good views of the situation. It is not easy to take pictures of the area.


Okay I finally got around to it and installed the rear seats and this is how I went about it.

First a few important points:

!: Your going to have to accept that the rear seat is too big for the car. It must be slightly modified to fit, there is no way around this (I tried).

2. I made it a point to not modify the chassis in any way (Except a few mounting holes). I also chose not to do any welding. This was so as many folks as possible could do this, with the minimum tools and expense.

3 Beg, buy or borrow a right angle grinder it will make your life much easier

4. Your going to have to do some of the engineering yourself and the seats are going to be in and out of the car 20 times. The relationships are complex and cannot be described or pictured well here.

First off, once you try to squeeze the seats in you will understand the statement the seats are too big. They are too big in every direction except thickness and even that is close on the bottom cushion. The bottom is the worst so it will be addressed first. The bottom cushion is too wide and will tip up in the back if left stock width, causing the seat back to sit too high. So we need to reduce the width:






First remove the hog rings from the back of the bottom seat so it looks like this

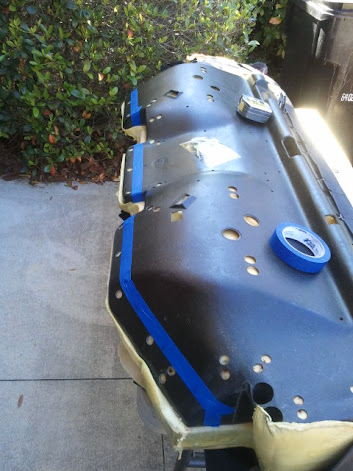

By my measurements we need to reduce the with to the front of the first hog ring hole, where the screw driver is pointing. Mark the cutting line somehow, I used blue painters tape.




Using the right angle grinder and a thin cutting wheel, which cuts through the glass reinforced plastic like butter, you get this


You can trim the foam even with the new edge of the plastic tub. Then drill a new set of 3/8" holes for the hog rings to thread through.

You can now reinstall the hog rings, snugging the leather to make up for difference in the seat pan width, there will be a few puffy spots but it is hidden behind the seat and not visible, don't sweat perfection here.

The other modification to the bottom is to reduce the width of the shell by 1". You will need to remove 1/2" from each end. If you do not do this and slam the doors to make them close tight, you will crush the plastic on the door cards.

Simply slice off 1/2" off the end of the plastic seat tub (Do not cut the seat foam!), it is curved and you only need to remove the widest part. You will end up with a long wedge piece removed. There will be a bit of bagginess in the leather when you reattach it, just stuff a bit of fiberfill between the foam and the leather, it will readily compress but make the leather look smooth. Sorry no pictures for this, I took a couple but didn't allow the camera to save them. :facepalm: The whole thing is readily apparent anyway.

This concludes the seat bottom modifications it will now fit "Properly".

On to the rear seat back.

The seat back is somewhat easier as it has no hard shell. It is foam around a welded wire frame and is somewhat flexible. We are going to exploit that flexibility as much as we can. When you trial fit the seat back you will notice you can "Spring" the back into place to make it fit. You will also notice the back wants to sit high in relation to the parcel shelf. When installing we need to keep the back pushed down as much as possible, which is why we cut the seat pan width. Notice that the back prevents the seat belt retractors from taking up the slack because it is pressing on the belt. Also notice the bolster area tends to sit proud of the wheel arch. And lastly the "Hook" in the center of the seat interferes with the seat dropping down. So we remove the "hook" as shown. (Try not to have cutting wheel explode when doing this, it will look neater.) Paint the cut edge.


The two hoops on the top outside ends do not interfere with anything and can be left intact. (I found this amazing)


To fix the interference with the seat belts remove several hog rings on the top corners, use a serrated knife and carefully remove as much foam as you can in that area. Don't go crazy here. When you reinstall the hog rings snug the leather and clip any long ends. The seat belts will now retract. No pictures for this and none needed.

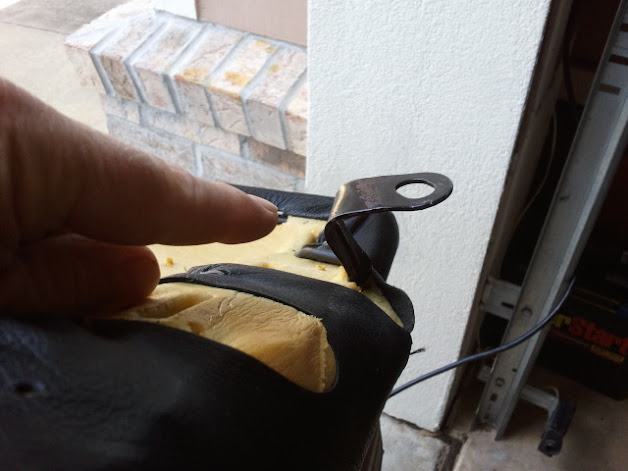

To mount the seat back you will need to reform the four tangs mounted on the seat. The stock shape is not even close to what we need, fortunately the location is almost ideal. Re-bend them to look like this:

Pass through area tang

Bolster area tang, which if bent just a touch short will pull the bolster down tight to the door/wheel well shape.

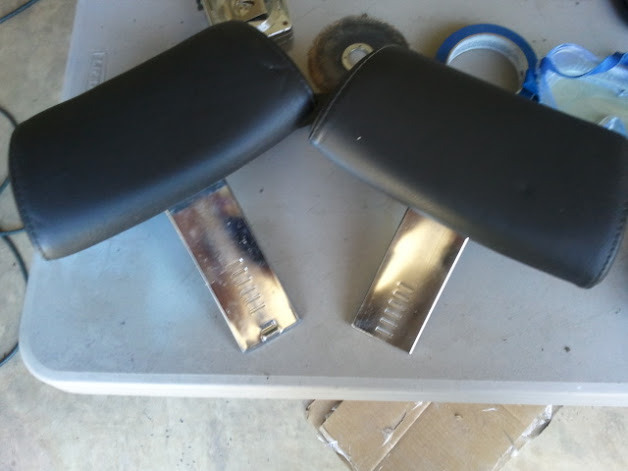

The head rests can either be simple or difficult, and of course I chose the difficult way.

I wanted the head rests to be removable for DD use visibility and for autocross weight reduction (They are heavy). However, you cannot remove the headrests in the E28 unless you shorten the mounting slider, it will hit the rear window and prevent removal. So I cut 'em off like the one on the right.


Mounting the headrest receiver is probably hardest thing of the entire project. You have no access with the seat back in place and the location has to be precise to mount to the seat back, once bolted down. I resorted to strong magnets,tape, and one mis-drilled hole, however I was finally able to get the whole mess assembled so everything worked and is strong. It is impossible to take pictures of this so your on your own here. (Hint .. think "Ohmmm")

My seats had the pass through behind the rear arm rest! Not sure it all E334's have it but I was happy. The PO of my car had cut an opening in the trunk bulkhead that fit the pass through almost perfectly (what are the odds?). All I had to do was smooth the rough edges and put some vinyl edge molding on it to have a working pass through for my skis (In Florida!)

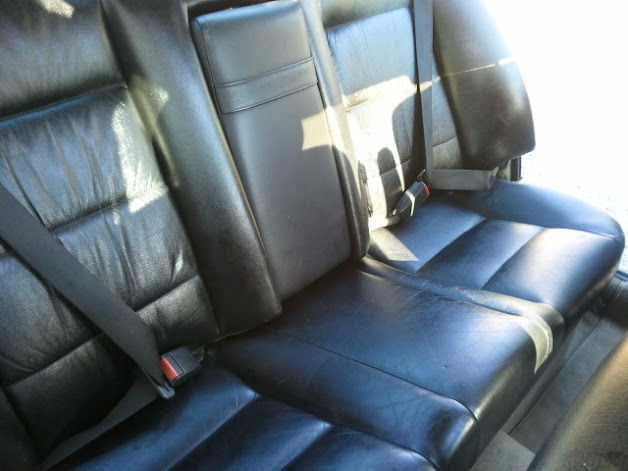

And there we have it folks. You will not have it done in a day and maybe not in a weekend but when your finished you have this.

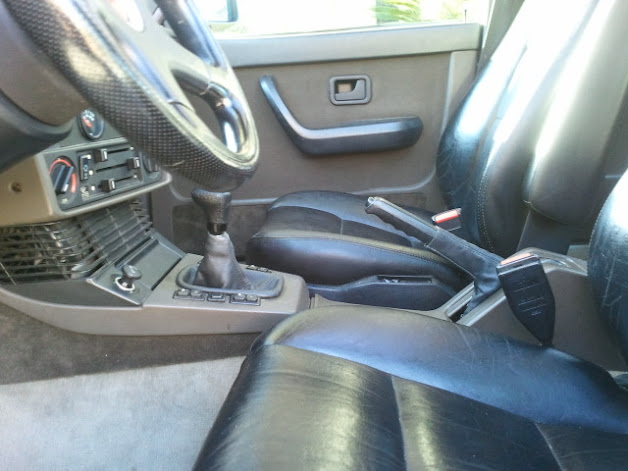

Notice how nicely the door pull clears the bolster!


If I can answer any questions feel free to ask, I'll mislead you as much as possible. ;)
Last edited by Coldswede on Feb 12, 2013 10:17 PM, edited 5 times in total.
Boiwonder
Posts: 148
Joined: Jul 07, 2011 2:54 AM
Location: Salt Lake City UT

Post by Boiwonder »

Wow wow wow :banana:
You should put it under tech talk!
and i'll probably be the first one to say, Sticky!! :D
CoyoteStarfish
Posts: 1016
Joined: Nov 14, 2008 6:06 PM
Location: Miami, FL

Post by CoyoteStarfish »

Ohh.. do want. :up:
WVe28
Posts: 2119
Joined: Jul 29, 2007 8:57 AM
Location: Charleston, WV

Post by WVe28 »

Nice work. Should make for a comfortable trip to Pittsburgh!
Kyle in NO
Posts: 17637
Joined: Feb 12, 2006 12:00 PM
Location: Nasty Orleans------> Batten-Rooehjch------>More Souther LA

Post by Kyle in NO »

Nice! Now its time to fix those twisted seat back cables.
M. Holtmeier
Posts: 3003
Joined: Mar 11, 2007 3:06 AM
Location: Dallas, Texas

Post by M. Holtmeier »

Those look real nice, Randy! I will say this swap certainly has made my DD eta much more comfortable.
skip535i
Posts: 5186
Joined: Oct 26, 2006 2:27 PM
Location: Lynchburg, VA

Post by skip535i »

I have an E34 with black comfort seats, too. If those are high mileage, then mine have seen a million miles!

Nice job on the write-up!
mooseheadm5
Beamter
Beamter
Posts: 23035
Joined: Apr 08, 2009 10:30 PM
Location: Charlottesville, VA
Contact:

Post by mooseheadm5 »

Kyle in NO wrote:Nice! Now its time to fix those twisted seat back cables.
There is a post from me somewhere showing the easy way to do that.
Nanajoth
Posts: 1545
Joined: Apr 19, 2008 6:38 PM
Location: TX

Post by Nanajoth »

Great write up!
Slow_Ballin'
Posts: 1420
Joined: Nov 15, 2010 12:37 AM
Location: Sacramento

Post by Slow_Ballin' »

How do these in relation to the stock seats? Do they sit any higher than the original e28 seats?

They look great in there!
Coldswede
Posts: 6858
Joined: Oct 10, 2008 1:48 PM
Location: Back U.P. North,. Where the water's blue, the wind is free and seasons four.

Post by Coldswede »

Slow_Ballin' wrote:How do these in relation to the stock seats? Do they sit any higher than the original e28 seats?

They look great in there!
Since they have height adjustment it is irrelevant. However, when fully lowered they sit lower than the stock seats. To me this is a big plus for use while wearing a helmet, no more tipping your head or leaning the seats too far back.
1st 5er
Posts: 20732
Joined: Jun 13, 2008 12:15 AM
Location: Cypress
Contact:

Post by 1st 5er »

Looks nice Randy.
...and a nice write-up.

I've got a set from an E32 that might happen one day.
m-racer
Posts: 5274
Joined: Feb 12, 2006 12:00 PM
Location: Tampa Bay Florida

Post by m-racer »

Excellent. Love heated seats.
shagrath
Posts: 14980
Joined: Jun 15, 2009 12:21 PM
Location: pLace

Post by shagrath »

Wouldn't you need a schematic figure how to make the seat switches compatible with the e34 seat harness? If it were me I would cut out the connector from an e34 and splice into the car. I dunno. More explanation on this would be good.
1st 5er
Posts: 20732
Joined: Jun 13, 2008 12:15 AM
Location: Cypress
Contact:

Post by 1st 5er »

On the E34 and E32 the switches are on the sides of the seats as opposed to the E28's being between the seats on the console.
All that's necessary to energize the switches is a power and ground source.
Coldswede
Posts: 6858
Joined: Oct 10, 2008 1:48 PM
Location: Back U.P. North,. Where the water's blue, the wind is free and seasons four.

Post by Coldswede »

1st 5er wrote:On the E34 and E32 the switches are on the sides of the seats as opposed to the E28's being between the seats on the console.
All that's necessary to energize the switches is a power and ground source.
Sherman is 100% correct.

Also if you look at the sub-harness pictures you see all the connections you need for the passenger seat. The driver seat has one more hot lead for the lumbar support motor.
shagrath
Posts: 14980
Joined: Jun 15, 2009 12:21 PM
Location: pLace

Post by shagrath »

1st 5er wrote:On the E34 and E32 the switches are on the sides of the seats as opposed to the E28's being between the seats on the console.
All that's necessary to energize the switches is a power and ground source.
Really? Very cool. So all that i would need to do is use the e28 ground and e28 power wires and join them to the underseat e34 power and ground wires that should be it? (I'm not worried about getting heated seats to work).
E28indenver
Posts: 106
Joined: Feb 12, 2006 12:00 PM
Location: Bedford, NY

Post by E28indenver »

They look great. I was considering these for mine, but fell across a set of sport e46 seats. Does the rear seat fit?
Slow_Ballin'
Posts: 1420
Joined: Nov 15, 2010 12:37 AM
Location: Sacramento

Post by Slow_Ballin' »

Old thread bump I know...

Does the original e28 seat belt mount to the e34 seat belt location? I am having issues getting mine bolted up on the passenger side. Need to figure it out before I can put the driver side in.

Any pics of the belt bolted would be awesome!
D Unit
Posts: 816
Joined: May 18, 2010 11:16 AM
Location: Bay Area, CA

Post by D Unit »

Slow_Ballin' wrote:Old thread bump I know...

Does the original e28 seat belt mount to the e34 seat belt location? I am having issues getting mine bolted up on the passenger side. Need to figure it out before I can put the driver side in.

Any pics of the belt bolted would be awesome!
hey Toby,

Underneath the plastic switch cover you will see a weird Bmw bolt where the seat belt will need to go. I left the bolt there for you already.
Slow_Ballin'
Posts: 1420
Joined: Nov 15, 2010 12:37 AM
Location: Sacramento

Post by Slow_Ballin' »

D Unit wrote:
Slow_Ballin' wrote:Old thread bump I know...

Does the original e28 seat belt mount to the e34 seat belt location? I am having issues getting mine bolted up on the passenger side. Need to figure it out before I can put the driver side in.

Any pics of the belt bolted would be awesome!
hey Toby,

Underneath the plastic switch cover you will see a weird Bmw bolt where the seat belt will need to go. I left the bolt there for you already.
Thanks Darren, I saw that there but was having issues getting the seatbelt to bolt up without interfering with the motor or getting in the way. I got it all sorted out today. Front and back seats are in and the car is looking and feeling better than ever!
cddallara
Posts: 3513
Joined: Apr 03, 2010 8:45 AM
Location: Lagunitas, Ca

Post by cddallara »

Glad you got it figured out, sorry about flaking on the pics this AM.
Slow_Ballin' wrote:
D Unit wrote:
Slow_Ballin' wrote:Old thread bump I know...

Does the original e28 seat belt mount to the e34 seat belt location? I am having issues getting mine bolted up on the passenger side. Need to figure it out before I can put the driver side in.

Any pics of the belt bolted would be awesome!
hey Toby,

Underneath the plastic switch cover you will see a weird Bmw bolt where the seat belt will need to go. I left the bolt there for you already.
Thanks Darren, I saw that there but was having issues getting the seatbelt to bolt up without interfering with the motor or getting in the way. I got it all sorted out today. Front and back seats are in and the car is looking and feeling better than ever!
Coldswede
Posts: 6858
Joined: Oct 10, 2008 1:48 PM
Location: Back U.P. North,. Where the water's blue, the wind is free and seasons four.

Post by Coldswede »

Bump for the back seat install. :banana:
pleasefixitup
Posts: 1856
Joined: Nov 21, 2011 2:40 AM
Location: Chicagoland, Illinois

Post by pleasefixitup »

A+

that is awesome.
Bulletproof 5
Posts: 82
Joined: Dec 14, 2012 9:00 AM
Location: South

Post by Bulletproof 5 »

Hell yeah the rear seats look badass. Thanks for sharing ive been waiting for the writeup for the longest time. :D
