T_C_D wrote:
Scottinva wrote:My m30b35 stock head flows 230CFM at 28" of water, at just under .5 lift (can't actually get there). My head flows more at .4, than yours does at .5 Something isn't adding up, when I did research that was what I saw other stock ones flowing as well. Yours seems low, I question there testing procedure or something about that cylinder head. My goal is around 250cfm.
That seems way high. I flowed a ported m30b34 head and it flowed 1805ish at .500.
ya m30b34 is like 180, m30b35 is like 225-230 from what i've seen. Miller has a chart on their website that got the exact same numbers as my eninge in the 225-230 range.
mooseheadm5
Beamter
Beamter
Posts: 23034
Joined: Apr 08, 2009 10:30 PM
Location: Charlottesville, VA
Contact:

Post by mooseheadm5 »

Murfinator wrote:Max CFM for this setup was 1156 CFM and we all know the car made 700+ HP.
No sir, it did not. Please refer to Ken regarding a discussion we had about correcting turbocharged dyno numbers for altitude. His numbers are still very impressive, but not 700+.
thespeedfactory
Posts: 561
Joined: Mar 01, 2012 8:26 PM
Location: Eden, Utah

Post by thespeedfactory »

Nice build. Interesting choice in pink tops, why not larger?

What is your intended goal or are you building a trailer/dyno queen?

Make sure you can change the plugs without removing the turbine. If not it makes changing soaked plugs (during tuning) an hour and a half long procedure.
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

thespeedfactory wrote:Nice build. Interesting choice in pink tops, why not larger?
65# injectors will supply 500hp all day with sufficient overhead. If they prove inadequate it's an easy swap.
What is your intended goal or are you building a trailer/dyno queen?
500+ hp, best possible handling, tractable, reliable, best possible audio, full interior, BMW motor upgraded with high quality parts.
Make sure you can change the plugs without removing the turbine. If not it makes changing soaked plugs (during tuning) an hour and a half long procedure.
Great advice. Thanks!
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

Partial punch list:

-Finish modifying engine harness for new sensors (knock, water temp, oil pressure, MAP, etc..) and AEM ECU
-Finish E24 blade fuse box swap. Had to extend most of the wiring, change every wire terminal to new style, soldered each connection and test each circuit
-Mount Aeromotive FPR
-Finish building center console gauge pod with Shawn D. ABS plastic plates, AEM Failsafe & serial gauges
-Swap standard size Optima battery for lighter and more compact Braille unit. Need the space for charge piping to plenum.
-Route turbo coolant hoses
-Route oil cooler hoses
-Fabricate downpipe
-New throttle & cruise control cables for B36 ITB's
-Fabricate reference/speed sensor bracket
-Shorten/modify exhaust studs to facilitate easier R&R of exhaust manifold
-Fabricate return port fitting on fuel rail. Very congested in this area. This was supposed to have been done by Imagineering but they gave up and left this task to me.
-Test fuel delivery
Nebraska_e28
Beamter
Beamter
Posts: 8815
Joined: Apr 13, 2006 11:18 PM
Location: Council Bluffs, IA
Contact:

Post by Nebraska_e28 »

Cool name. How was it dervied? Has an interesting ring to it rather than something involving Cowtipping. :rofl:
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

Nebraska_e28 wrote:Cool name. How was it dervied? Has an interesting ring to it rather than something involving Cowtipping. :rofl:
I edited my OP with a new paragraph. I'll add it again here for those already familiar with the build and skip the earlier posts:

"Perhaps due to my surname of Murphy, the law of the same name -Murphy's Law- has been in great affect in my personal undertakings. For this reason I've researched each aspect of the build over and over and sought the advice of those who've been there and done that. Many of these fine gentlemen have spent many hours on the phone and via email answering questions and elaborating on their writings as they pertain to this build. Despite this the gremlins will continue to do their dirty deeds and make life hell. With this as a cue I've decided to name the car: God's Vengeance. The name is apt because I've felt punished for attempting to create an automobile that excels at most everything: performance, comfort, amenities and aesthetics. Can one have the best of all worlds, have the cake and eat it too, in a single car? Perhaps not, but we shall see... "
Jelmer538i
Posts: 1222
Joined: Feb 12, 2006 1:00 PM
Location: Netherlands
Contact:

Post by Jelmer538i »

Very nice and clean build but when you trow so much money at an engine why not use a S38? A M30 head is never going to flow like a S38 head.
wkohler
Posts: 50617
Joined: Oct 05, 2006 11:04 PM
Location: Phönix, Arizona, USA
Contact:

Post by wkohler »

All the colors will make up for that. And the name too. Mostly the name.
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

Jelmer: True, a B35 may never flow as well as an S38, but does it need to? Let's say I make between 450 and 550hp at the wheels with the current setup. Do I really NEED more power? Most likely any increases in power will only spin the wheels faster. Besides, while keeping the pressure < 1bar I'll retain sufficient power to romp on the vast majority of vehicles on the road. Vehicles with > 500hp tend to require extensive maintenance and require frequent rebuilds. The drivers also tend to get stupid and exacerbate the situation trying to show off. Rather, my goal is tractability and reliability to go along with the power increase.

While contemplating this build back in 2010 I came across David Vizards 'How To Build Horsepower'. In the chapter on cylinder heads there's a graph comparing flow efficiency of 1 vs. 2 valve heads. D is valve diameter vs. curtain area:


The 12-valve cylinder head may never out flow the 24-valve head but if it makes an easy 500+hp at the wheels then I've achieved my goal. I'd be willing to bet that two nearly identical cars: one with 500 and the other with 700hp, piloted on the same track by any driver but a professional would average near identical lap times. My point is, the additional power to be gained with the S38 vs. B35 is useless with the exception of bragging over dyno charts. Dyno numbers don't mean shit when your E92 M3 gets passed by a 23 year-old 5 series at the motorsport park.
Nebraska_e28
Beamter
Beamter
Posts: 8815
Joined: Apr 13, 2006 11:18 PM
Location: Council Bluffs, IA
Contact:

Post by Nebraska_e28 »

This: :up:
Murfinator wrote: Dyno numbers don't mean shit when your E92 M3 gets passed by a 23 year-old 5 series at the motorsport park.
Or some other unsuspecting unsuspecting exotic car whilst crusing down the highway! :haul:
Jelmer538i
Posts: 1222
Joined: Feb 12, 2006 1:00 PM
Location: Netherlands
Contact:

Post by Jelmer538i »

Yes, 500 hp is your goal. With an S38 you get there pretty easy and you don't have to buy a different camshaft.

But keep up the nice work, the build is very clean!
RangerGress
Posts: 678
Joined: Jan 20, 2012 4:15 PM
Location: Savannah, GA
Contact:

Post by RangerGress »

Tammer in Philly wrote:I'm really enjoying the build, but I'm going to offer my standard cautionary note. While I think tracking a street car is a fine idea for novice and intermediate drivers who are generally pretty slow, and it's a great learning experience that really everyone should do at least once or twice. However, if you are going to the track with regularity, the game changes. You're no longer a novice, so you're probably horsing the car around pretty well, carrying some significant speed into and through corners, and driving near the limits of adhesion most of the time. You're at the track frequently, so even if the probability of a mechanical or mental failure on a per-event basis is the same, the likelihood that you will land on the wrong side of that coin toss is higher. And since you're going faster due to that experience, the penalty will be higher.

You are building what will be a very fast car. If you really do get to the track 10+ times annually, please consider buying or building a dedicated car with the full complement of safety equipment. 25-year-old 3-point belts just don't cut it when the car in front of you drops water and you head into a wall at 80+ mph. This guy walked away with sore nuts and a bunch of bruises thanks to his cage, harnesses, and HANS:
http://vimeo.com/33128427
http://forums.bimmerforums.com/forum/sh ... 248&page=1
Was reading thru this thread when to my surprise I found my own video, and aftermath pic from Road Atlanta Dec11, some weeks before I joined Mye28. I recall the cracked rib more than sore nuts. But what American boy hasn't cracked a rib in pursuit of adventure?

Here's more aftermath pics. http://s465.photobucket.com/albums/rr17 ... 20Dec2011/
mooseheadm5
Beamter
Beamter
Posts: 23034
Joined: Apr 08, 2009 10:30 PM
Location: Charlottesville, VA
Contact:

Post by mooseheadm5 »

I know that trailer...
winfred
Posts: 2839
Joined: May 12, 2007 7:15 PM
Location: loserana

Post by winfred »

did that with my e30 at the last autocross, put 2+ seconds on him on a minute coarse that held no traction at all for me :D
Murfinator wrote: Dyno numbers don't mean shit when your E92 M3 gets passed by a 23 year-old 5 series at the motorsport park.
gazm3
Posts: 115
Joined: Oct 05, 2009 6:30 AM
Location: Melbourne Australia

Post by gazm3 »

I'm seriously thinking about doing a track e28 build with the 3.5ltr turbo engine. I'm about 6mths away from having my twin screw s50B32 build in e36 m3 done but the motor will be to precious to track as it will cost about 15k to rebuild. An m30b35 costs about $1000 or less to replace.
Also IMO the e28 chassis is very underrated as a track car. Not as good as an e30 no doubt but the e30s in aust are getting over 10k to buy now.

I also have an m635csi but it's too precious to turn into a track car.
Xenocide
Posts: 3370
Joined: Jun 08, 2008 4:29 PM
Location: Atlanta, GA

Post by Xenocide »

gazm3 wrote:Not as good as an e30 no doubt but the e30s in aust are getting over 10k to buy now. .
No shit? :shock: :shock:

A decent example in the states can still be had sub 3k :shock:
Black Steel
Posts: 350
Joined: May 18, 2010 8:19 AM
Location: Warwickshire, UK

Post by Black Steel »

Love this thread :D
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

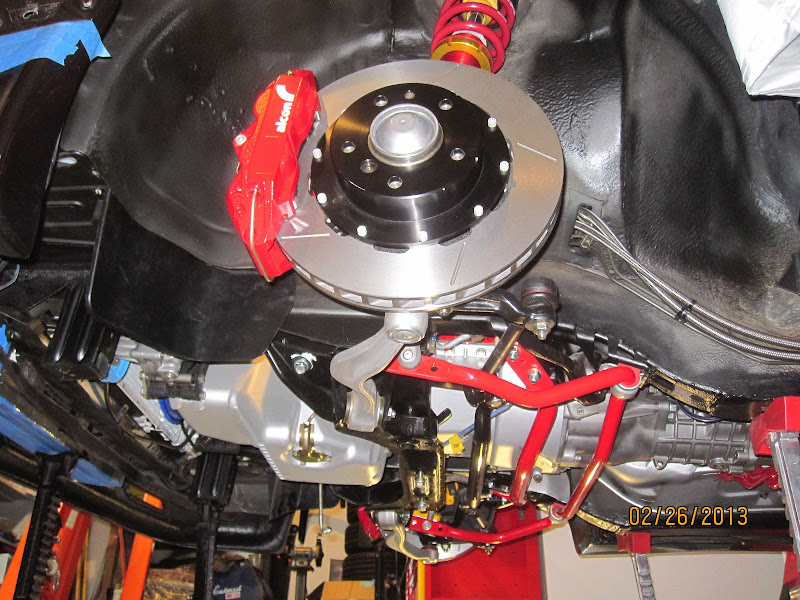

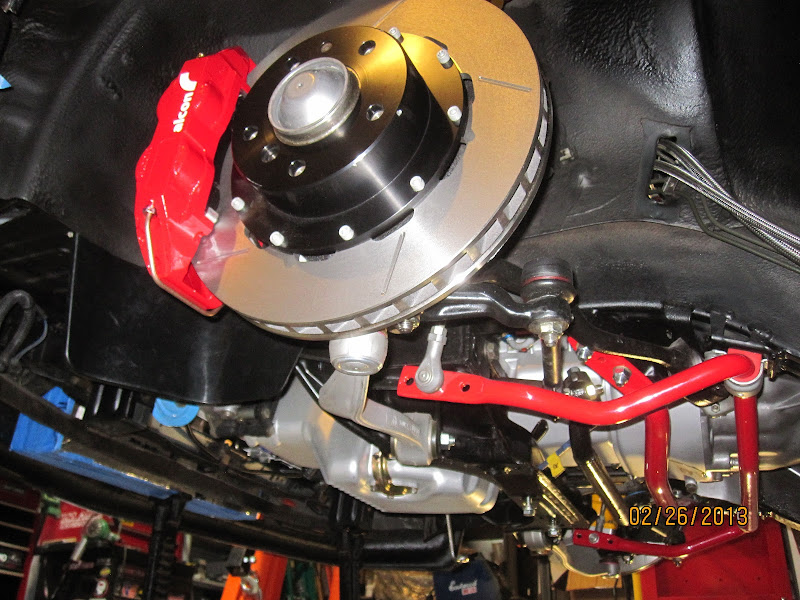

Custom Alcon slotted rotors 348mm x 30 on T-6061 aluminum hats CNC machined and anodized black by Joes racing in Everett, Wa.

athayer187
Posts: 1575
Joined: May 10, 2006 11:27 AM
Location: Meriden, CT

Post by athayer187 »

Murfinator wrote:Custom Alcon slotted rotors 348mm x 30 on T-6061 aluminum hats CNC machined and anodized black by Joes racing in Everett, Wa.

Details on the rest of the brake setup?
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

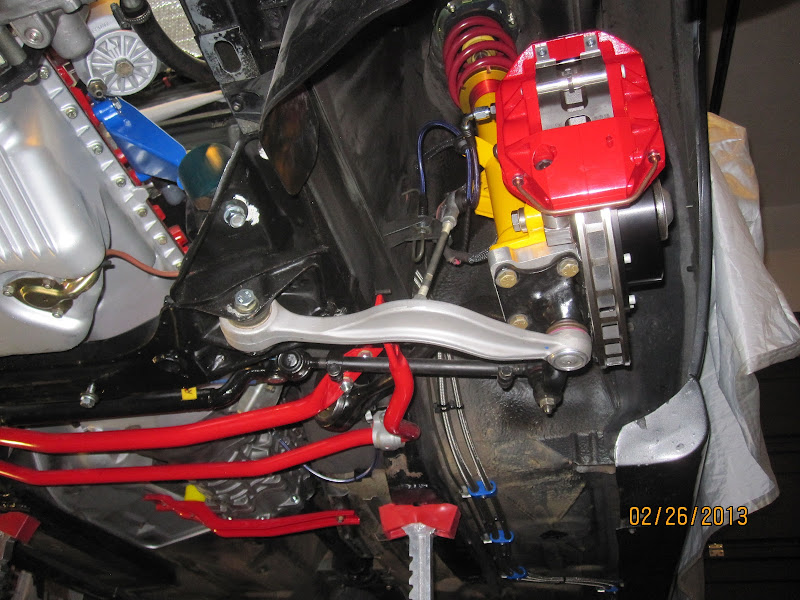

Brake System Details:

Alcon 4-piston calipers (41.3mm / 38.1mm, 16mm B-Type pad)
Hawk Performance Ceramic pads
Alcon vented 348x30mm two-piece rotors
CNC machined T-6061 aluminum rotor hats
UUC brake lines

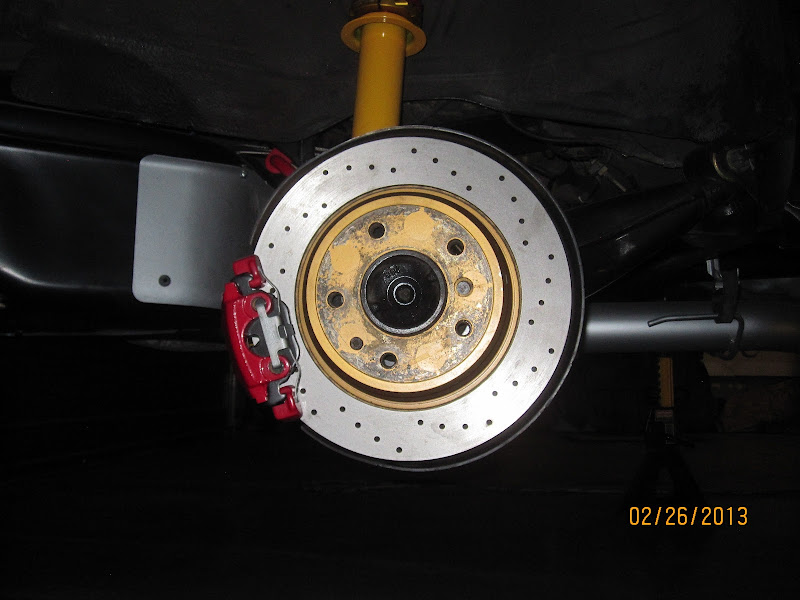

BMW 540i rear calipers - fully rebuilt, powdercoated to match front rotors
750 master cylinder with ATE Super Blue Racing brake fluid

Nebraska_e28
Beamter
Beamter
Posts: 8815
Joined: Apr 13, 2006 11:18 PM
Location: Council Bluffs, IA
Contact:

Post by Nebraska_e28 »

Can you comment on the weight savings per side of this setup (caliper & rotor) vs. the typical e32 brake upgrade? I've been contemplating a reduction in unsprung weight with a similar setup & it's advantages.
EuroShark
Posts: 1425
Joined: Feb 12, 2006 1:00 PM
Location: Colorado

Post by EuroShark »

Sweet Jesus... This is beautiful.
BDK
Posts: 5291
Joined: Feb 12, 2006 1:00 PM

Post by BDK »

I know that we don't always get a long here Murfinator but I will give you this,
when you do something, you jump in with both feet, don't you!!

Kudos, Sir!!!!
Murfinator
Posts: 1482
Joined: Sep 07, 2007 1:39 AM
Location: ZION - 84003

Post by Murfinator »

Thank you all for the comments.

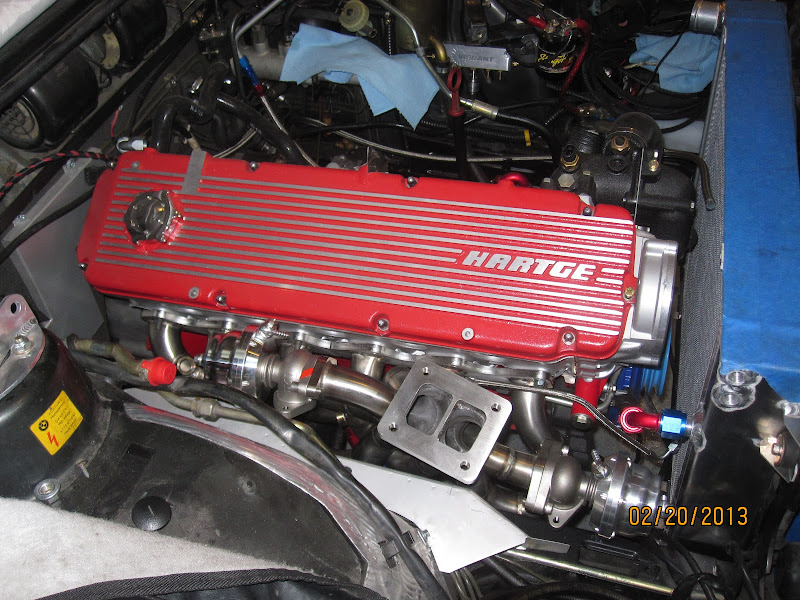

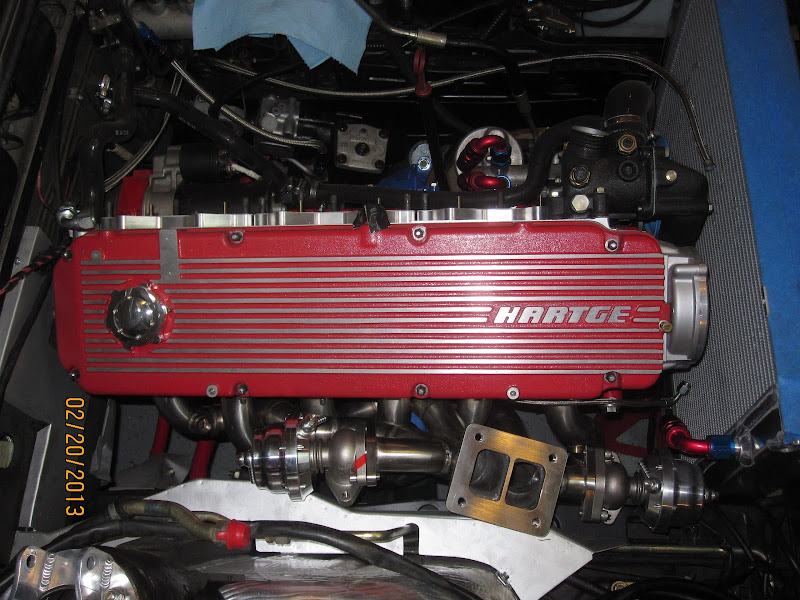

The exhaust manifold has been quite a challenge. Dozens of cut-off wheels and yards of 1 5/8 tubing later I finally produced a decent mock-up that fits with equal length primaries, each with its own sensor bung for more precise tuning. The final design in hand, the stainless version was produced. Below is a pic with the un-coated stainless manifold mocked up with the wastegates in place to confirm fitment. Once it's back from coating I'll get more pics posted.
